EnviroNode GSM Hub

Dosec’s EnviroNode GSM hub provides an interface between sensor instrumentation built with Dosec’s proprietary low power RF protocol and the end user, utilising a local cellular network. To achieve this, the EnviroNode Hub synchronises data and files from sensors based on a user specified schedule. The data is transferred to the cloud using the Hub’s in-built cellular modem. Dosec’s cloud processing platform, EnviroServe, processes the data and makes it available for customers via the web using our simple EnviroGo web app. By using Dosec’s EnviroNode telemetry network management software, the end user can view sensor data, perform configuration changes and query hubs and sensors in real-time.

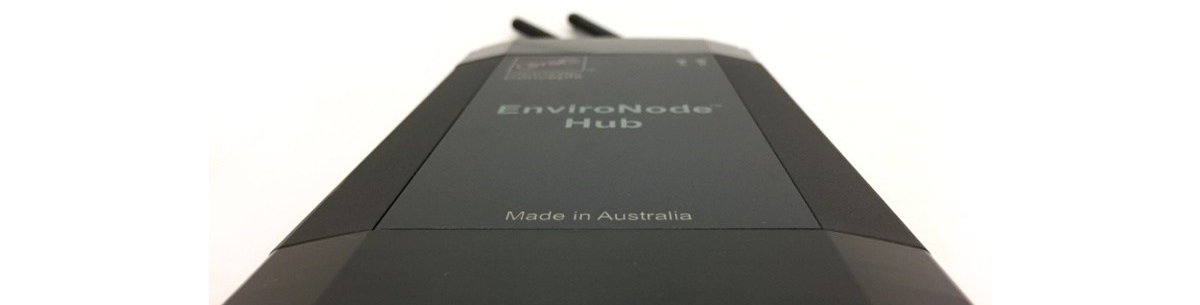

environode_hub_perspective

EnviroNode GSM Hub Features

  • User customisable data collection schedule
  • User customisable GSM upload schedule
  • Pentaband cellular module enables worldwide deployment
  • Locally store full CSV files containing sensor data
  • Sensor network range expansion by linking up to 20 hubs
  • Network management ability using EnviroNode
  • Intelligent Power Management and charging

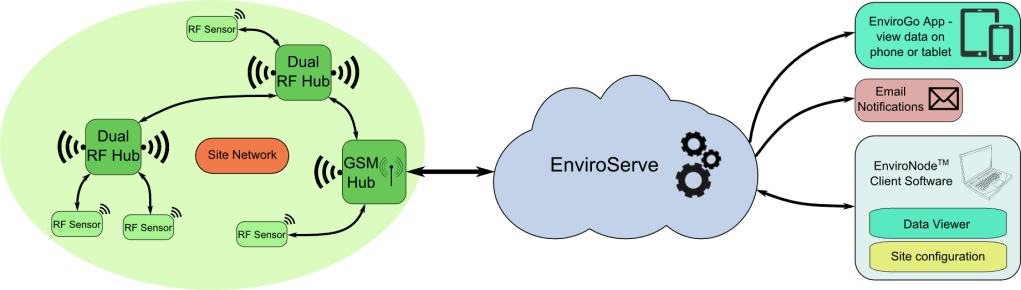

 EnviroNodeBlockDiagram

EnviroNode Satellite Hub

Dosec’s EnviroNode Satellite Hub provides an interface between the end user and sensor instrumentation built with Dosec’s proprietary low-power RF communications module. The Satellite Hub collects data from nearby sensors, compresses the data and transmits it over the Iridium satellite network at a user-specified interval. Dosec’s cloud processing platform, EnviroServe, processes the data and makes it available for customers via the web.

EnviroNode Satellite Hub Features

  • User customisable upload schedule ranging from once per minute to once per day
  • User customisable data collection schedule
  • Manual control capability for configuration and testing
  • Locally store full CSV files containing sensor data
  • User settable data compression and resolution level
  • Intelligent power management and charging

Easy Installation & Two-way Text Message Technical Support

  • Dosec’s EnviroNode Satellite Hub wizard makes on-site installation and configuration straight-forward using it’s in-built software configuration utility.
  • During installation or site maintenance of a Satellite Hub it is typical to have limited or no mobile phone coverage. The EnviroNode Satellite Hub allows live technical support to be provided via messages sent and received via a laptop PC and the Satellite Hub. The messages are received via Dosec’s cloud platform EnviroServe, and viewed and responded to via  Dosec’s web app utility.

View more information on EnviroNode Telemetry Networks and other types of EnviroNode Hubs here.

Contact us to request more information or to discuss how EnviroNode Networks can bring your technology to the Internet of Things.
